Fixed RFID Readers

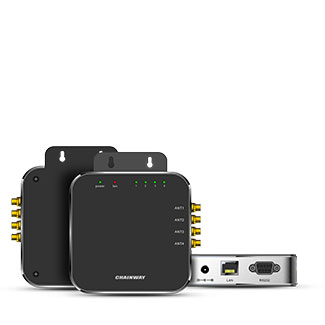

Chainway UR4
Fixed RFID Readers
Four-port Fixed UHF Reader, Supports RS232 and RJ45. Authorised Southern African distributor — request pricing, specs or a demo for the Chainway UR4.
Full specifications
Appearance
| Dimensions | 102.8 x 102.8 x 28 mm |
| Weight | 390g (without antenna) |
| Material | Aluminium alloy |
RFID & Scanning
| Chipset & Protocol | Impinj Gen2X, EPC Gen2/ISO18000-6C |
| Frequency | 865-868 / 902-928 / 920-925 MHz |
| Antenna Ports | 4-channel 50Ω SMA |
| Output Power | 1W (30dBm); 2W (33dBm) optional |
| Receive Sensitivity | <-84dBm |
| Read Rate | 1300+ tags/sec |
I/O
| Interfaces | RS-232, RJ45 (10/100 Base-T) |
| GPIO | 2 in (optocoupled), 1 out (relay) |
| Baud Rate | 115200bps |
Performance
| Input Voltage | DC 9V-12V |
| Work Current | 800mA ±5% @ DC12V |
| Standby Current | <30mA |
Durability
| Operating Temp | -25°C to 65°C |
| Storage Temp | -40°C to 85°C |
| Humidity | 10%-95% |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
