Handheld RFID Readers & Bluetooth RFID Readers

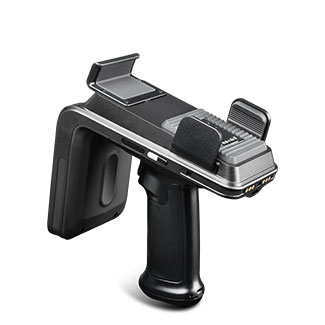

Chainway R7
Handheld RFID Readers & Bluetooth RFID Readers
Make Your Device a Pro RFID Terminal.. Authorised Southern African distributor — request pricing, specs or a demo for the Chainway R7.
Full specifications
Appearance
| Dimensions (Basic/Magnetic) | 157 x 85.2 x 146.4 mm |
| Dimensions (Clip-on) | 157 x 85.2 x 162.4 mm |
| Weight | 578g(Basic)/590g(Magnetic)/642g(Clip-on) |
Performance
| Battery | 6700mAh removable |
| Battery Meter | NTC sensor + capacity gauge |
| Charging Temp | 0°C to 45°C |
Connectivity
| Bluetooth | 5.0 |
| WiFi | 802.11a/b/g/n/ac/ax dual-band (optional) |
| NFC | Tap-to-pair |
| USB | Type-C |
RFID & Scanning
| RF Chip | Impinj E series (Gen2X) |
| Protocol | EPC Gen2 / ISO18000-63 |
| Frequency | FCC 902-928, EU 865-867.6/915-921, CH 920.5-924.5 MHz |
| Read Rate | 1300 tags/sec |
| Max Range | Up to 30m (Impinj M830 tags) |
| Output Power | 1-30dBm, 1dB steps |
Durability
| Drop Test | 1.5m multiple drops to concrete |
| Tumble Test | 1000 x 0.5m falls |
| IP Rating | IP54 |
| Operating Temp | -20°C to 50°C |
| Storage Temp | -40°C to 70°C |
I/O
| Interfaces | USB 2.0 Type-C, pogo-pin dock |
| Buttons | Power, Scan, Mode |
| LED Indicators | Battery, mode, status, BT, WiFi |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
