Bluetooth RFID Readers

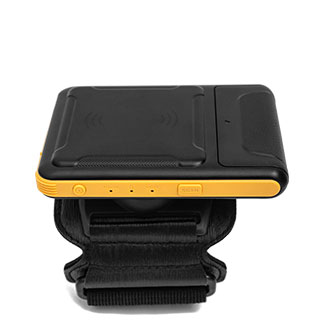

Chainway R5
Bluetooth RFID Readers
Can be paired with Android/iOS device via Bluetooth, RIFD R/W Up to 14m. Authorised Southern African distributor — request pricing, specs or a demo for the Chainway R5.
Full specifications
Appearance
| Dimensions | 108 x 78 x 18 mm |
| Weight | 200 g |
Performance
| Battery | 2000mAh removable |
| Charging Current | 5V / 1.5A |
| Charging Time | 2 hours |
Connectivity
| Bluetooth | BLE 5.0 |
| USB | Type-C |
| Buttons | ON/OFF, SCAN |
| LED Indicators | Charge status, Bluetooth status |
RFID & Scanning
| RF Chip | Impinj Gen2X |
| Protocol | EPC C1 Gen2 / ISO18000-6C |
| Frequency | 920-925/902-928/865-868 MHz |
| Output Power | 1W (30dBm), 2W optional |
| Max Range | 14m (Alien H3 tag) |
| Read Rate | 900+ tags/sec |
Durability
| IP Rating | IP65 |
| Drop Test | 1.5m to concrete |
| Operating Temp | -20°C to 50°C |
| Storage Temp | -40°C to 70°C |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
