Biometric Readers
P80
P80 Industrial Tablet (Android 9)
8'' Screen & 8000mAh Battery, Abundant Functions Available
Rugged Tablets & Biometric Readers
Chainway P80
Rugged Tablets & Biometric Readers
The Chainway P80 comes in 5 configurations — Industrial Tablet, Industrial Tablet, Optical Fingerprint Tablet, RFID Tablet or RFID Tablet — so you can match the exact capture method to the job. 8'' Screen & 8700mAh Battery, Abundant Functions Available.
Full specifications
Appearance
| Dimensions | 250.8 x 152.0 x 15.0 mm |
| Weight | 680 g |
| Display | 8-inch IPS LTPS, 1920x1200 |
| Touch Panel | Corning Gorilla Glass, glove/wet-touch |
Performance
| CPU | Octa-core 2.0GHz |
| RAM | 4GB or 6GB |
| Storage | 64GB + microSD up to 256GB |
| Battery | 8700mAh Li-ion |
| OS | Android 13 |
Connectivity
| WiFi | 802.11a/b/g/n/ac, dual-band |
| Bluetooth | v5.1 |
| Cellular | 4G LTE (TDD/FDD multi-band) |
| GPS | GPS/AGPS, GLONASS, BeiDou, Galileo |
| NFC | 13.56MHz, ISO14443A/B |
RFID & Scanning
| Frequency | 865-868/920-925/902-928 MHz |
| Protocol | EPC C1 Gen2 / ISO18000-6C |
| Output Power | 1W (30dBm), 2W optional |
| Read Rate | 900+ tags/sec |
| Max Range | Up to 10m (Impinj MR6 tag) |
Durability
| IP Rating | IP65 |
| Drop Test | 1.5m multiple drops to concrete |
| Tumble Test | 500 x 0.5m falls |
| Operating Temp | -20°C to 50°C |
I/O
| USB | USB 2.0 Type-C, OTG |
| Card Slots | Micro SIM x1 + Micro SIM/TF x1 |
| Cameras | 5MP front, 13MP AF rear |
| Sensors | Gravity, gyroscope, geomagnetic, light/proximity |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
Other Chainway P80 configurations
Biometric Readers
P80

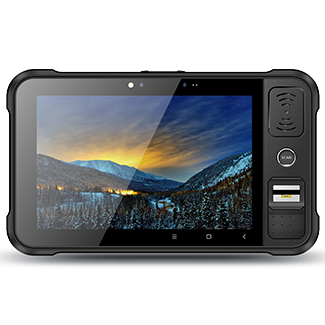

P80 Optical Fingerprint Tablet (Android 9)
