Rugged Tablets
P100

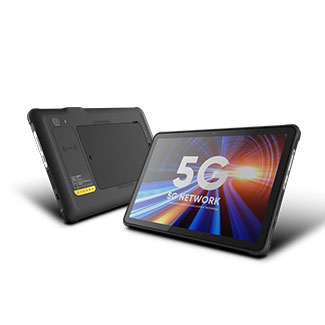

P100 AI 5G Industrial Tablet (Android 14)
5G，10.95" Display，10000mAh Removable Battery，IP67 Sealing
Rugged Tablets
Chainway P100
Rugged Tablets

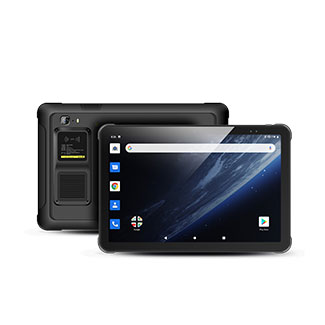

The Chainway P100 comes in 3 configurations — 5G Built-in RFID Tablet, AI 5G Industrial Tablet or AI 5G Medical Tablet — so you can match the exact capture method to the job. Built-in UHF module, Read Range of 3+ m, 11 inch HD Display.
Full specifications
Appearance
| Dimensions | 263.5 x 175.0 x 23.0mm |
| Weight | 883g with battery |
| Display | 10.95in IPS, 1920x1200 |
| Touch Panel | Corning Glass multi-touch, gloves/wet hands |
Performance
| CPU | Octa-core 2.4GHz (optional 2.6GHz) |
| RAM/ROM | 4GB+64GB or 8GB+256GB (optional) |
| Battery | 10,000mAh removable smart battery |
| Charging | 27W fast charge, hot-swap support |
| OS | Android 14 (AER) |
Connectivity
| 5G Bands | N1/N3/N5/N7/N8/N20/N28/N38/N41/N66/N77/N78/N79 |
| WiFi | 802.11 a/b/g/n/ac/ax, dual-band, 2x2 MIMO |
| Bluetooth | Bluetooth 5.2, headset support |
| GNSS | GPS, BeiDou, GLONASS, Galileo, L1+L5 dual-freq |
| HF RFID / NFC | 13.56MHz HF RFID; SoftPOS supported (optional) |
RFID & Scanning
| RFID Frequency | 865-868 / 920-925 / 902-928MHz (customizable) |
| RFID Protocol | EPC Class1 Gen2 / ISO18000-63, Impinj Gen2X |
| Max Read Range | 3m (with Impinj M750 tag) |
| Barcode Scanning | 1D/2D symbologies, multiple scan engine options |
Durability
| IP Rating | IP67 (IEC) |
| Drop Test | 1.2m, MIL-STD-810 compliant |
| Operating Temp | -20C to 50C |
| ESD Protection | +/-15KV air / +/-8KV conductive |
I/O
| USB | USB 3.0 Type-C, OTG |
| Card Slots | 1x Nano SIM + 1x SIM/TF, PSAM optional, eSIM |
| Optional Modules | Thermal printer, iris scan, temp sensor |
| Cameras | Front 5MP; rear 13MP AF+flash (optional 16MP) |
| Audio | 2 mics, 2 speakers, digital earphone jack |
| Sensors | G-sensor, light, proximity, gyroscope, geomagnetic |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
