Chainway MC51
Mobile Computers & Handheld RFID Readers

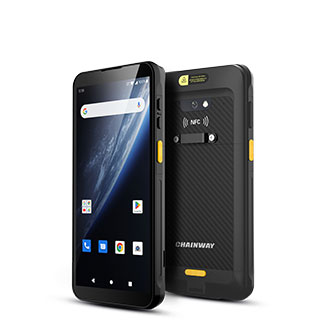

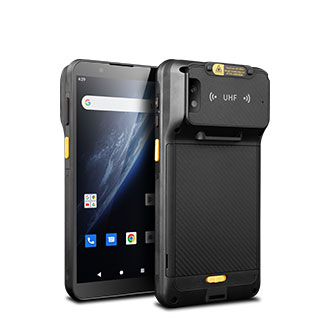

The Chainway MC51 comes in 3 configurations — 5G Built-in RFID Reader, 5G Mobile Computer or 5G UHF RFID Reader — so you can match the exact capture method to the job. Breakthrough in Read Rates and Accuracy. Powerful RFID Now Fits Right in Your Pocket..
Full specifications
Appearance
| Dimensions | 161.0 x 77.8 x 15.5mm (29.2mm thickest) |
| Weight | 323g with battery |
| Display | 6in 1440x720, 18:9, Gorilla Glass |
| Touch Panel | Multi-touch, gloves/wet hands |
Performance
| CPU | Qualcomm Octa-core 2.4GHz, 4nm |
| RAM/ROM | 4GB+64GB or 8GB+256GB (optional) |
| Battery | 5000mAh removable, hot-swap, QC3.0 |
| OS | Android 14 (upgradable to Android 18+) |
Connectivity
| 5G Bands | N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 |
| WiFi | 802.11 ax-6E tri-band 2.4/5/6GHz, 2x2 MIMO |
| NFC | 13.56MHz, SoftPOS, ISO14443A/B |
| GPS | GPS (optional) |
RFID & Scanning
| RFID Frequency | 865-868 / 920-925 / 902-928MHz |
| RFID Protocol | EPC C1 Gen2 / ISO18000-6C, Impinj Gen2X |
| Read Range/Rate | 5m max, 750+ tags/sec, +5 to +30dBm |
| 2D Scanner Engine | Zebra SE4710, SE55 or CM60 |
Durability
| IP Rating | IP67 (IEC) |
| Drop Test | 1.5m, MIL-STD-810H (SGS tested) |
| Tumble Test | 1000 x 0.5m falls |
| ESD Protection | +/-15KV air / +/-8KV contact |
| Operating Temp | -20C to 50C |
I/O
| USB | USB Type-C 3.1, OTG |
| SIM Slots | 1x SIM + 1x SIM/TF, eSIM optional |
| Cameras | Front 5MP; rear 16MP AF+flash; top camera |
| Audio | 2 mics (1 noise-cancel), speaker, receiver |
| Sensors | G-sensor, proximity, light, geomagnetic, gyro |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
Other Chainway MC51 configurations
Handheld RFID Readers
MC51

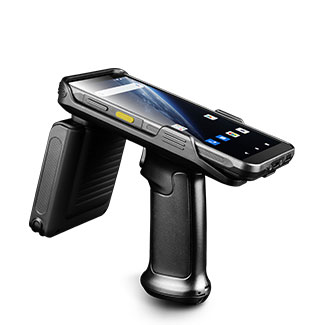

MC51 5G UHF RFID Reader (Android 14)
The New Benchmark in RFID Performance — Max Speed, Max Range, Max Accuracy.
