Handheld RFID Readers
MC50

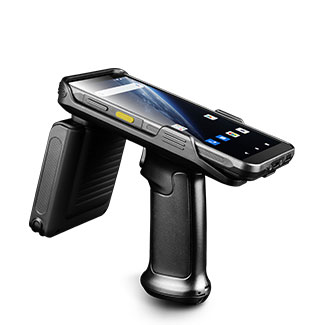

MC50 5G UHF RFID Reader (Android 12/14)
5G, Detachable RFID Sled, Based on Impinj E710 chip
Mobile Computers & Handheld RFID Readers
Chainway MC50
Mobile Computers & Handheld RFID Readers

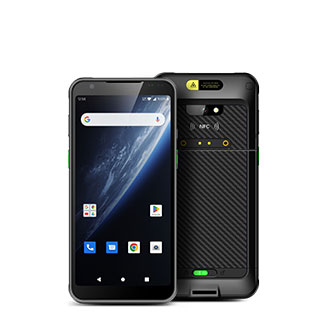

The Chainway MC50 comes in 2 configurations — 5G Mobile Computer or 5G UHF RFID Reader — so you can match the exact capture method to the job. 5G, IP67 Sealing , 6-inch HD screen，5000mAh Removable Battery.
Full specifications
Appearance
| Dimensions | 161.0 x 77.8 x 15.5mm |
| Weight | 280-288g with battery |
| Display | 6in HD 1440x720, 18:9, Gorilla Glass |
| Touch Panel | Multi-touch, gloves/wet hands |
Performance
| CPU | Qualcomm Octa-core 2.0GHz |
| RAM/ROM | 4/64GB, 6/128GB or 8/128GB (optional) |
| Battery | 5000mAh removable, QC3.0 + RTC |
| OS | Android 12/14, GMS & AER |
Connectivity
| 4G LTE Bands | B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/B41 |
| 5G Bands | N1/N3/N8/N28/N41/N78/N79 |
| Bluetooth | Bluetooth 5.1 |
| WiFi | 802.11 a/b/g/n/ac/ax-ready, dual-band |
| NFC | 13.56MHz, ISO14443A/B/15693, 2-4cm range |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo |
RFID & Scanning
| 2D Scanner Engine | Zebra SE4710/SE4750/SE55 or CM60 |
| Barcode Symbologies | 1D/2D: UPC/EAN, Code128, QR, DataMatrix +more |
| UHF RFID | Optional back clip, Impinj Gen2X, EPC Gen2 |
Durability
| IP Rating | IP67 (IEC) |
| Drop Test | 1.5m, 20+ drops, full temp range |
| Tumble Test | 1000 x 0.5m falls |
| Operating Temp | -20C to 50C |
| ESD Protection | +/-15KV air / +/-8KV contact |
I/O
| USB | USB Type-C 3.1, OTG |
| SIM Slots | 1x SIM + 1x SIM/TF card |
| Audio | 2 mics (1 noise-cancel), speaker, receiver |
| Cameras | Front 5MP; rear 16MP AF+flash |
| Sensors | G-sensor, proximity, light, geomagnetic, gyro |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
