RFID Modules

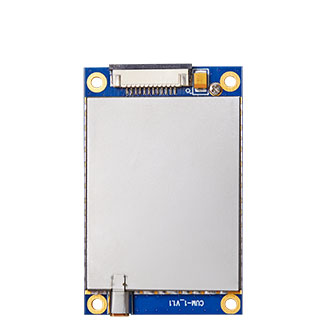

Chainway CM2000-1
RFID Modules
With high integration level, it enables reliable UHF RFID performance. Authorised Southern African distributor — request pricing, specs or a demo for the Chainway CM2000-1.
Full specifications
Appearance
| Dimensions | 57.2 x 36.8 x 7.6mm |
| Weight | 26.0g |
RFID & Scanning
| RF Chip | Indy R2000 |
| Protocol | EPCglobal Gen2 (ISO18000-6C) |
| Frequency | 865-868/920-925/902-928MHz |
| Output Power | 5-30dBm adjustable, ±0.5dB precision |
| Power Flatness | ±0.2dB |
| Receive Sensitivity | <-85dBm |
I/O
| Antenna Interface | 50Ω MMCX Receptacle |
| Host Interface | UART 3.3V TTL, 115200bps |
| Connector | 12 PIN FPC Connector |
| Input Voltage | DC 3.5-5.25V |
| Power Use | 7.5W@33dBm or 4.8W@30dBm RF |
Performance
| Regions Supported | FCC, ETSI, China (customizable) |
| Diagnostics | Tag RSSI, antenna detector, temp monitor |
| Working Mode | Single/DRM |
Durability
| Operating Temp | -25°C to 65°C |
| Storage Temp | -40°C to 85°C |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
