RFID Modules

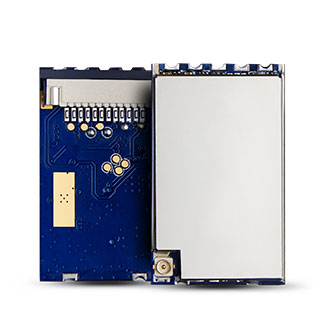

Chainway CM-3N
RFID Modules
Impinj E310 Chip, RFID Module. Authorised Southern African distributor — request pricing, specs or a demo for the Chainway CM-3N.
Full specifications
Appearance
| Dimensions | 31.0 x 19.0 x 3.1mm |
| Weight | 3g |
RFID & Scanning
| RF Chip | Impinj E310 |
| Protocol | EPCglobal Gen2 (ISO18000-6C), Gen2X |
| Frequency | 865-868/920-925/902-928MHz |
| Output Power | 5-30dBm adjustable, ±1dB precision |
| Regions | FCC, ETSI, China (custom) |
I/O
| Host Interface | UART 3.3V TTL, 115200bps |
| Antenna Port | I-PEX U.FL-R-SMT connector |
| Input Voltage | DC 3.5-5.25V |
| Power Use | 4.3W@27dBm RF, 0.175W standby |
Durability
| Operating Temp | -25°C to 65°C |
| Storage Temp | -40°C to 85°C |
| Humidity | 10-95% |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
