Mobile Computers

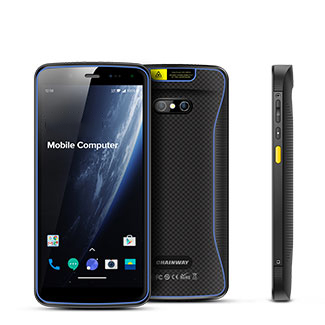

Chainway C90A
Mobile Computers
Larger Display, Lighter Weight, Stronger Performance.. Authorised Southern African distributor — request pricing, specs or a demo for the Chainway C90A.
Full specifications
Appearance
| Dimensions | 158.5 x 76.0 x 13.1mm |
| Weight | 230g |
| Display | 5.7" IPS LTPS, 1440x720 |
| Touch Panel | Corning Gorilla Glass, multi-touch |
Performance
| CPU | Octa-core 2.0GHz |
| RAM/ROM | 3/4GB + 32GB/64GB |
| Storage | Up to 256GB microSD (TF) |
| Battery | 5000mAh, up to 490h standby |
| OS | Android 14 |
Connectivity
| WLAN | 802.11 a/b/g/n/ac dual-band, IPv6 |
| Bluetooth | BT5.0 (V2.1-V4.1+HS) |
| 4G LTE | 13 bands (B1-B41) |
| NFC | 13.56MHz, 2-4cm range |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo |
RFID & Scanning
| Barcode Engine | Honeywell N6603/N6703/CM60 |
| RFID Engine | Impinj Gen2X UHF, built-in |
| Rear Camera | 16MP+2MP, autofocus + flash |
| Front Camera | 5MP |
Durability
| IP Rating | IP67 (IEC) |
| Drop Test | 1.5m drops across temp range |
| Tumble Test | 1000 x 0.5m falls |
| Operating Temp | -20°C to 50°C |
| ESD | ±15KV air / ±8KV contact |
I/O
| USB | Type-C, USB 2.0, OTG |
| Card Slots | 1 nano SIM + 1 SIM/TF |
| Keys | Power, 2 scan keys, volume +/- |
| Audio | 2 mics (1 noise-cancel), 1 speaker |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
