Handheld RFID Readers
C72

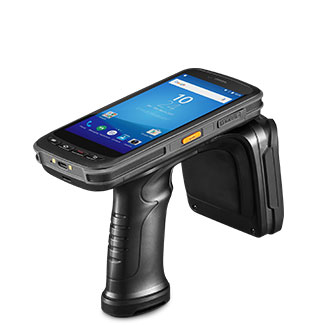

C72 UHF RFID Reader (Android 11/13)
Best-in-Class UHF RFID Performance, Trusted by the Industry.
Mobile Computers & Handheld RFID Readers
Chainway C72
Mobile Computers & Handheld RFID Readers

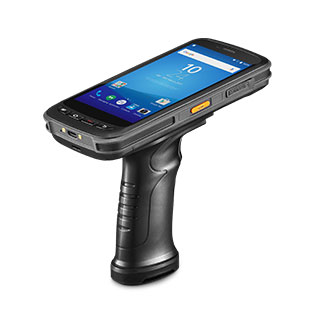

The Chainway C72 comes in 2 configurations — Mobile Computer or UHF RFID Reader — so you can match the exact capture method to the job. Ultimate Barcode Scanning, 8000mAh Powerful Battery, Easy to Hold.
Full specifications
Appearance
| Dimensions | 164.2 x 80.0 x 24.3mm |
| Weight | 654g |
| Display | 5.2" IPS LTPS, 1920x1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch |
Performance
| CPU | Octa-core 2.3GHz |
| RAM/ROM | 4GB + 64GB/128GB |
| Storage | Up to 256GB microSD (TF) |
| Battery | 8000mAh Li-ion, >500h standby |
| OS | Android 11/13 |
Connectivity
| WLAN | 802.11 a/b/g/n/ac dual-band |
| Bluetooth | 5.0 |
| 4G LTE | 17 bands (B1-B41) |
| NFC | 13.56MHz, 2-4cm range |
| GNSS | GPS/AGPS, GLONASS, BeiDou |
RFID & Scanning
| Barcode Engine | Zebra SE4750/Honeywell N6603/CM60 |
| RFID Engine | Impinj Gen2X UHF (optional) |
| RFID Antenna | Internal, single port |
| Camera | 13MP rear, autofocus + flash |
Durability
| IP Rating | IP65 |
| Drop Test | 1.5m drops, min 20 times |
| Tumble Test | 1000 x 0.5m falls |
| Operating Temp | -20°C to 50°C |
| ESD | ±15KV air / ±6KV contact |
I/O
| USB | Type-C 2.0, OTG |
| Card Slots | 1 nano SIM + 1 SIM/TF |
| Keys | 4 front, power, 2 scan, 1 function |
| Audio | 1 mic, 1 speaker |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
