Handheld RFID Readers
C71

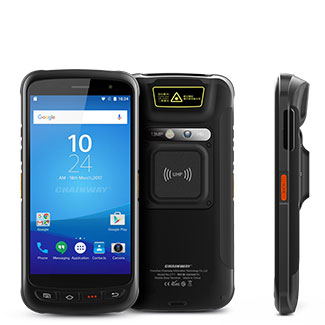

C71 Built-in RFID Reader (Android 11/13)
Lightweight and Portable, Built-in RFID (Impinj E Series chips, Up to 4m)
Mobile Computers & Handheld RFID Readers
Chainway C71
Mobile Computers & Handheld RFID Readers

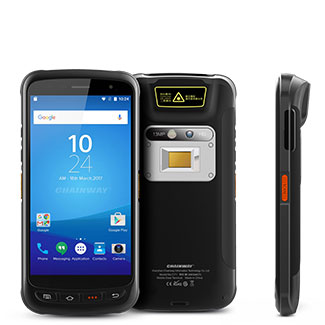

The Chainway C71 comes in 4 configurations — Biometrics Reader, Built-in RFID Reader, Mobile Computer or Optical Fingerprint Scanner — so you can match the exact capture method to the job. Accurate Fingerprint Reading and Facial Recognition, 5.2" IPS 1080P Screen.
Full specifications
Appearance
| Dimensions | 164.2 x 78.8 x 17.5mm (24.5mm thick) |
| Weight | <314g |
| Display | 5.2" IPS LTPS, 1920x1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch |
Performance
| CPU | Octa-core 2.3GHz |
| RAM/ROM | 4GB + 64GB/128GB |
| Storage | Up to 256GB microSD (TF) |
| Battery | 5000mAh, >350h standby/>12h use |
| OS | Android 11/13 |
Connectivity
| WiFi | 802.11 a/b/g/n/ac dual-band |
| Bluetooth | 5.0 |
| 4G LTE | 16 bands (B1-B41) |
| NFC | 13.56MHz |
| GNSS | GPS/AGPS, GLONASS, BeiDou |
RFID & Scanning
| Barcode Engine | Zebra SE4750/Honeywell N6603 (2D) |
| RFID Engine | Impinj Gen2X UHF (optional) |
| Fingerprint | 508dpi/500dpi, multiple sensors |
| Facial Recognition | 13MP autofocus rear cam + flash |
| Iris Scanner | Optional USB iris scanner (IR) |
Durability
| IP Rating | IP65/IP67 |
| Drop Test | 1.8m drops, min 20 times |
| Tumble Test | 1000 x 0.5m falls |
| Operating Temp | -20°C to 50°C |
| ESD | ±15KV air / ±6KV contact |
I/O
| USB | Type-C 2.0, OTG |
| Card Slots | 1 SIM + 1 SIM/TF hybrid |
| Keys | 4 front, power, 2 scan, 1 function |
| Sensors | Light, proximity, gravity |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
Other Chainway C71 configurations
Mobile Computers
C71

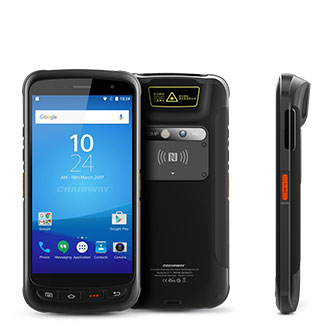

C71 Mobile Computer (Android 11/13)
Abundant Functions, Optional Barcode / RFID/ Fingerprint / NFC Scanning, etc.
Biometric Readers
C71

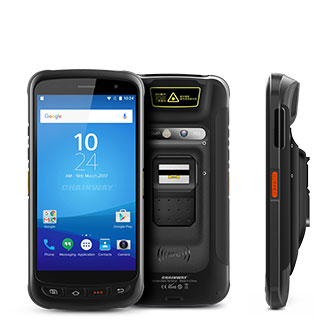

C71 Optical Fingerprint Scanner (Android 11/13)
With FBI Certified Morpho Fingerprint, 1/2D Barcode Scanning, NFC, etc.
