Biometric Readers
C66

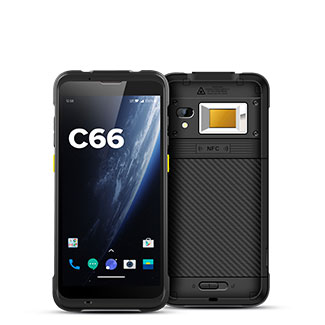

C66 Fingerprint Scanner (Android 11/13)
Biometric Reader, 5.5" IPS Display, Qualcomm Snapdragon™ 662 Octa-core
Mobile Computers & Handheld RFID Readers
Chainway C66
Mobile Computers & Handheld RFID Readers

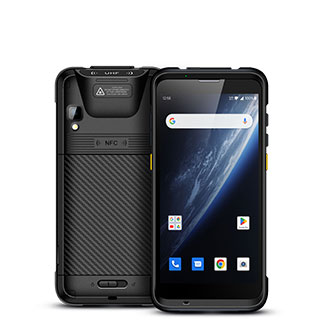

The Chainway C66 comes in 5 configurations — Built-in RFID Reader, Fingerprint Scanner, Mobile Computer, UHF RFID Reader or Wi-Fi Only — so you can match the exact capture method to the job. Portable Built-in RFID Reader, Based on Impinj E Series chips, 5.5" IPS Display.
Full specifications
Appearance
| Dimensions | 160.0 x 76.0 x 26.0mm |
| Weight | 297g |
| Display | 5.5in IPS, 1440 x 720 (18:9) |
Performance
| CPU | Qualcomm Octa-core 2.0GHz |
| RAM/ROM | 3GB+32GB / 4GB+64GB / 6GB+64GB |
| OS | Android 11/13, GMS |
| Battery | 5200mAh removable, QC3.0 |
| Standby | Up to 490 hours |
Connectivity
| WLAN | 802.11ac/ax-ready, 2.4G/5G dual-band |
| Bluetooth | 5.1 |
| WWAN 4G | B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo |
| NFC | 13.56MHz, 2-4cm range |
RFID & Scanning
| RFID Frequency | 865-868 / 920-925 / 902-928MHz |
| RFID Protocol | EPC C1 Gen2 / ISO18000-6C |
| RFID Antenna | Linear polarized |
| RFID Power | 1W (+19 to +30dBm adjustable) |
| RFID Max Range | 2.7m (Alien H3 anti-metal tag) |
Durability
| IP Rating | IP65 |
| Drop Spec | 1.8m, 20+ drops (2.4m w/ rubber boot) |
| Operating Temp | -20°C to 50°C |
| Storage Temp | -40°C to 70°C |
I/O
| USB | Type-C, USB 3.1, OTG |
| SIM Slots | 1 Nano SIM, 1 Nano SIM/TF |
| Camera | 13MP rear autofocus + flash |
| Audio | Dual mics, speaker, receiver |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
Other Chainway C66 configurations
Mobile Computers
C66

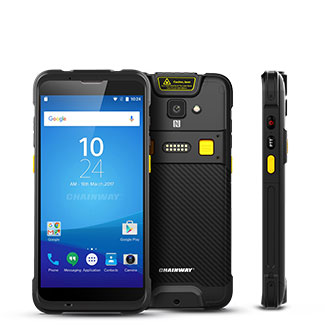

C66 Mobile Computer (Android 11/13)
Optional Barcode or RFID Scanning, Fingerprint Recognition, NFC, etc.
Handheld RFID Readers
C66

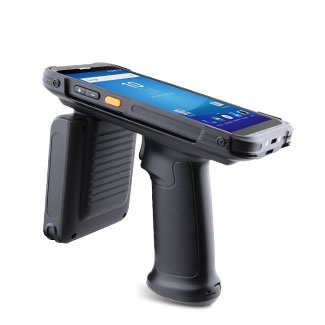

C66 UHF RFID Reader (Android 11/13)
Stronger UHF Performance (Impinj E Series chips)
Mobile Computers
C66

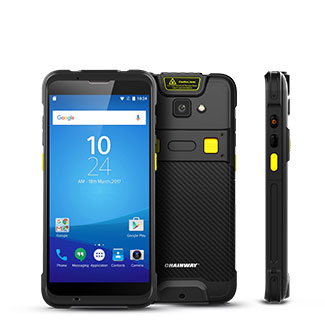

C66 Wi-Fi Only (Android 11)
WiFi-6-ready, Qualcomm Snapdragon™ 662, 5.5" Display
