Mobile Computers
C63

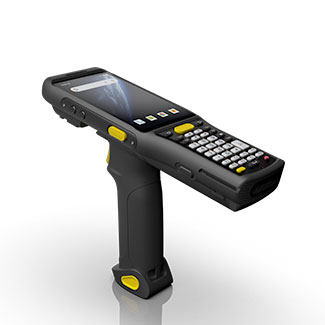

C63 Mobile Computer (Android 13)
The Flagship Keypad Handheld For Next-Level Industrial Data Capture.
Mobile Computers
Chainway C63
Mobile Computers
The Chainway C63 comes in 2 configurations — Cold Storage Mobile Computer or Mobile Computer — so you can match the exact capture method to the job. 5600mAh low-temperature battery, active heating for display and scan window.
Full specifications
Appearance
| Dimensions | 203.5 x 72.8 x 34.8mm (160mm w/ pistol) |
| Weight | 385g (571g with pistol) |
| Display | 4in HD, 800 x 480 |
| Touch Panel | Multi-touch, glove/wet-hand capable |
Performance
| CPU | Octa-core 2.0GHz |
| RAM/ROM | 4GB+64GB / 6GB+128GB (UFS, optional) |
| OS | Android 13 |
| Battery | 5600mAh removable (5000mAh pistol opt.) |
| Active Heating | Heated display + scan window |
Connectivity
| WLAN | 802.11ac/ax-ready, fast roaming |
| Bluetooth | 5.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo |
| NFC | 13.56MHz, 2-4cm range |
| WWAN | 2G/3G/4G (region-dependent bands) |
RFID & Scanning
| RFID Engine | Impinj Gen2X |
| 2D Scanner | Zebra SE4710/SE55, Honeywell N6603/N6703 |
| Symbologies | 1D/2D + postal codes supported |
Durability
| IP Rating | IP67 |
| Drop Spec | 1.5m multiple drops, full temp range |
| Tumble | 1000 x 0.5m falls |
| Operating Temp | -30°C to 50°C |
| ESD | +15kV air / +8kV conductive |
I/O
| USB | Type-C, USB 3.1, OTG |
| Card Slots | 1 Micro SIM, 1 TF card |
| Camera | 13MP rear autofocus + flash |
| Audio | Noise-cancelling mic, speaker, receiver |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
