Mobile Computers
C61

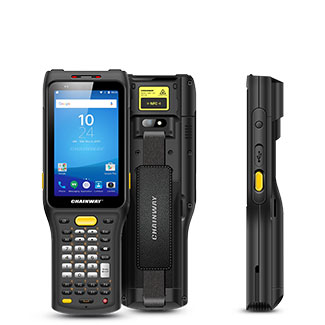

C61 Mobile Computer (Android 11/13)
Optional 27keys/37keys/47keys, Powerful Removable Battery
Mobile Computers & Handheld RFID Readers
Chainway C61
Mobile Computers & Handheld RFID Readers
The Chainway C61 comes in 3 configurations — Cold Storage Mobile Computer, Mobile Computer or UHF RFID Reader — so you can match the exact capture method to the job. Optional 27keys/37keys/47keys, Powerful Removable Battery.
Full specifications
Appearance
| Dimensions | 202.0 x 72.5 x 32.0mm |
| Weight | 370g (SE4710) / 404g (SE4850) |
| Display | 4in capacitive, 800 x 480, low-temp |
Performance
| CPU | Octa-core 2.0GHz |
| RAM/ROM | 3GB+32GB / 4GB+64GB / 6GB+64GB |
| OS | Android 11/13, GMS certified |
| Battery | 6400mAh removable (5200mAh pistol opt.) |
| Runtime | 5.5h continuous scan at -30°C |
Connectivity
| WLAN | 802.11ac/ax-ready, 2.4G/5G dual-band |
| Bluetooth | 5.1 |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo |
| NFC | 13.56MHz, 2-4cm range |
| WWAN | 2G/3G/4G (regional variants) |
RFID & Scanning
| RFID Frequency | 865-868 / 920-925 / 902-928MHz |
| RFID Protocol | EPC C1 Gen2 / ISO18000-6C |
| RFID Antenna | Circular polarized, 4dBi |
| RFID Max Range | 27m (Impinj MR6 tag) |
| RFID Read Rate | 1300+ tags/sec |
Durability
| IP Rating | IP65 |
| Drop Spec | 1.8m, 20+ drops to concrete |
| Operating Temp | -30°C to 50°C |
| Storage Temp | -40°C to 70°C |
I/O
| Keypad | 27 / 37 / 47 key options |
| USB | Type-C, USB 3.1, OTG |
| Card Slots | 1 SIM, 1 TF card |
| Audio | 2 mics (noise cancel), 2 speakers |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.
Other Chainway C61 configurations
Handheld RFID Readers
C61
C61 UHF RFID Reader (Android 11/13)
Superior UHF Performance (Impinj E Series chips, Up to 30m)
