Handheld RFID Readers
C5

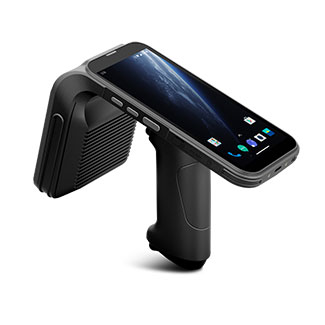

C5 UHF RFID Reader (Android 11/13)
Integrated RFID Reader, Optional Fingerprint Recognition etc.
Handheld RFID Readers & Biometric Readers
Chainway C5
Handheld RFID Readers & Biometric Readers
The Chainway C5 comes in 2 configurations — Fingerprint Scanner or UHF RFID Reader — so you can match the exact capture method to the job. Integrated RFID Reader, Fingerprint Recognition etc..
Full specifications
Appearance
| Dimensions | 178.8 x 96.5 x 128.4mm |
| Weight | 626g (with battery) |
| Display | 5in IPS, 1280 x 720 |
| Touch Panel | Corning Gorilla Glass, multi-touch |
Performance
| CPU | Octa-core 2.3GHz |
| RAM/ROM | 4GB+128GB (4GB+64GB optional) |
| OS | Android 11 / 13 |
| Battery | 7000mAh removable (13400mAh pistol opt.) |
| Expansion | microSD up to 256GB |
Connectivity
| WLAN | 802.11 a/b/g/n/ac, 2.4G/5G dual-band |
| Bluetooth | 5.0 |
| WWAN | B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/B38/B39/B40/B41 |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo |
| NFC | 13.56MHz, ISO14443A/B, ISO15693 |
RFID & Scanning
| RFID Chip | Impinj Gen2X |
| RFID Frequency | 865-868 / 920-925 / 902-928MHz |
| RFID Protocol | EPCglobal Gen2 (ISO18000-6C) |
| RFID Max Range | 33m (Alien H3 anti-metal tag) |
| RFID Read Rate | 1300+ tags/sec |
| Fingerprint Sensor | TLK1NC02 (ISO/IEC 19794-2) |
Durability
| IP Rating | IP65 |
| Drop Spec | 1.5m multiple drops, full temp range |
| Tumble | 1000 x 0.5m falls |
| Operating Temp | -20°C to 50°C |
I/O
| USB | Type-C (USB 2.0), OTG |
| Card Slots | 2x PSAM (opt.), 1x Nano SIM, 1x Nano SIM/TF |
| Rear Camera | 13MP autofocus, flash |
| Front Camera | 5MP |
Specifications as published by Chainway — confirm exact configuration with our sales team before ordering.

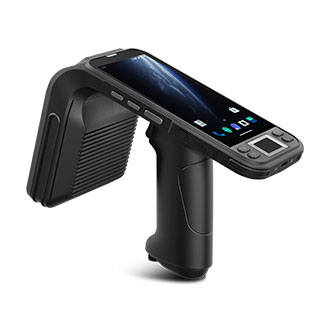

Other Chainway C5 configurations
